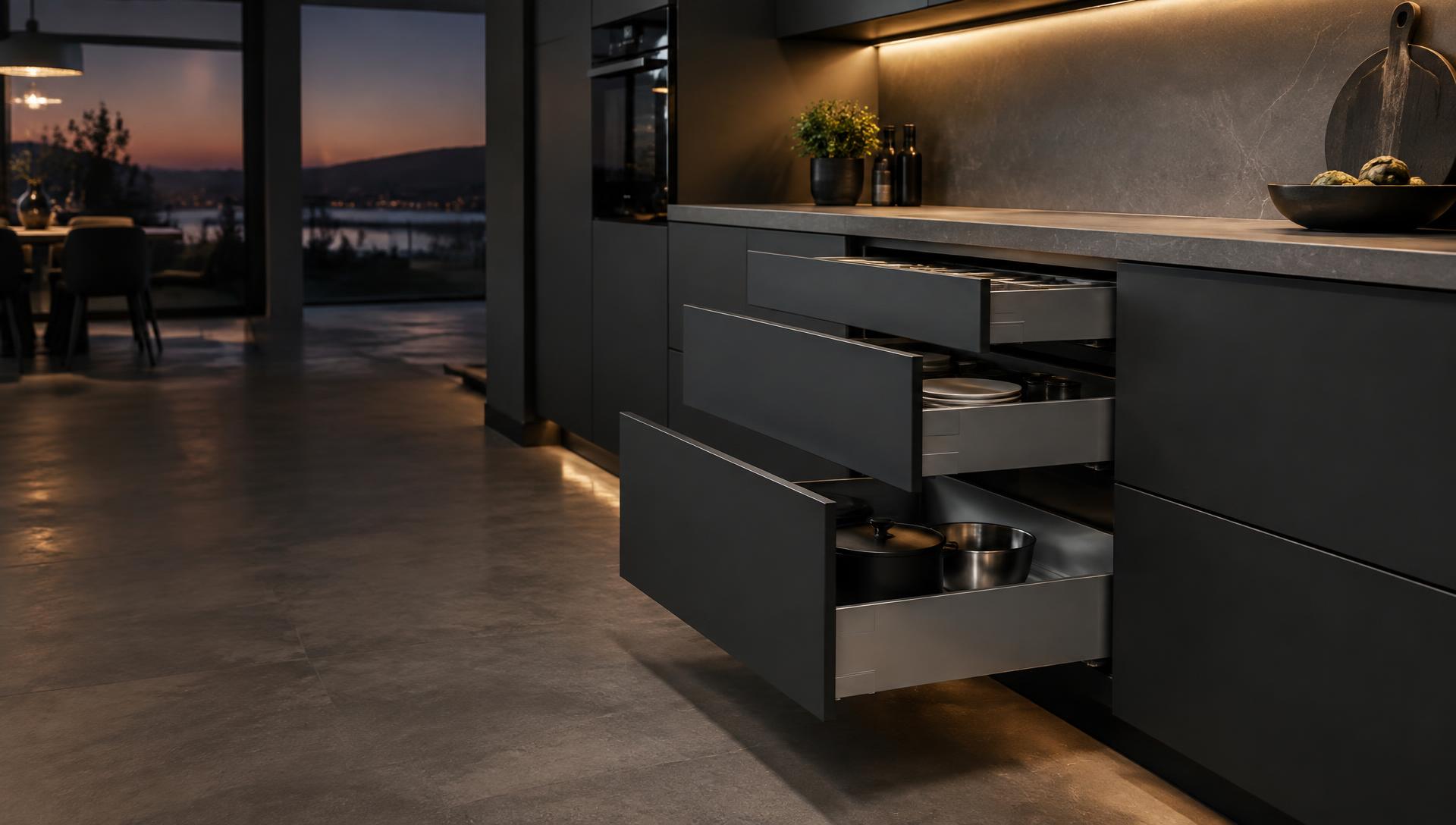

Modern charcoal handleless kitchen with three soft-close anthracite drawers open on full-extension runners under warm LED light

Drawer systems & runners

Explore Our Drawer Systems & Runners

Cemux A box and H box soft-close drawers, synchronised concealed slides, ball-bearing runners and drawer accessories — a flexible drawer system to meet any requirement.

Every drawer SKU, searchable in one place and in stock in Nenagh.

Browse the range Trade enquiry

Cetech-Move · the excellent benefits

A drawer runner built for 100,000 openings

Light Hardware Supplies stocks the Cemux drawer range in Ireland: soft-close, full-extension drawers on the Cetech-Move runner, rated to 40 kg (65 kg version available) and tested to 100,000 cycles at 40 kg to EN 15338 and BS6222-2:2009 + A1:2017 level H. The range carries the LGA Qualitäts-Zertifikat (ID 1111227769). Trade customers across Munster can collect from our trade counter in Nenagh, Co. Tipperary, and we deliver nationwide.

40 kg / 65 kg loadingExcellent capacity — standard runners carry 40 kg, heavy-duty version 65 kg.

  • 40 kg / 65 kg loading: Excellent capacity — standard runners carry 40 kg, heavy-duty version 65 kg.
  • Full extension: Smooth movement right to the back of the drawer, so nothing hides at the rear.
  • Integrated soft-close: Silent, controlled closing built into the runner — no add-on dampers.
  • 100,000 cycles: Tested at 40 kg to EN 15338, and compatible with automatic assembly.

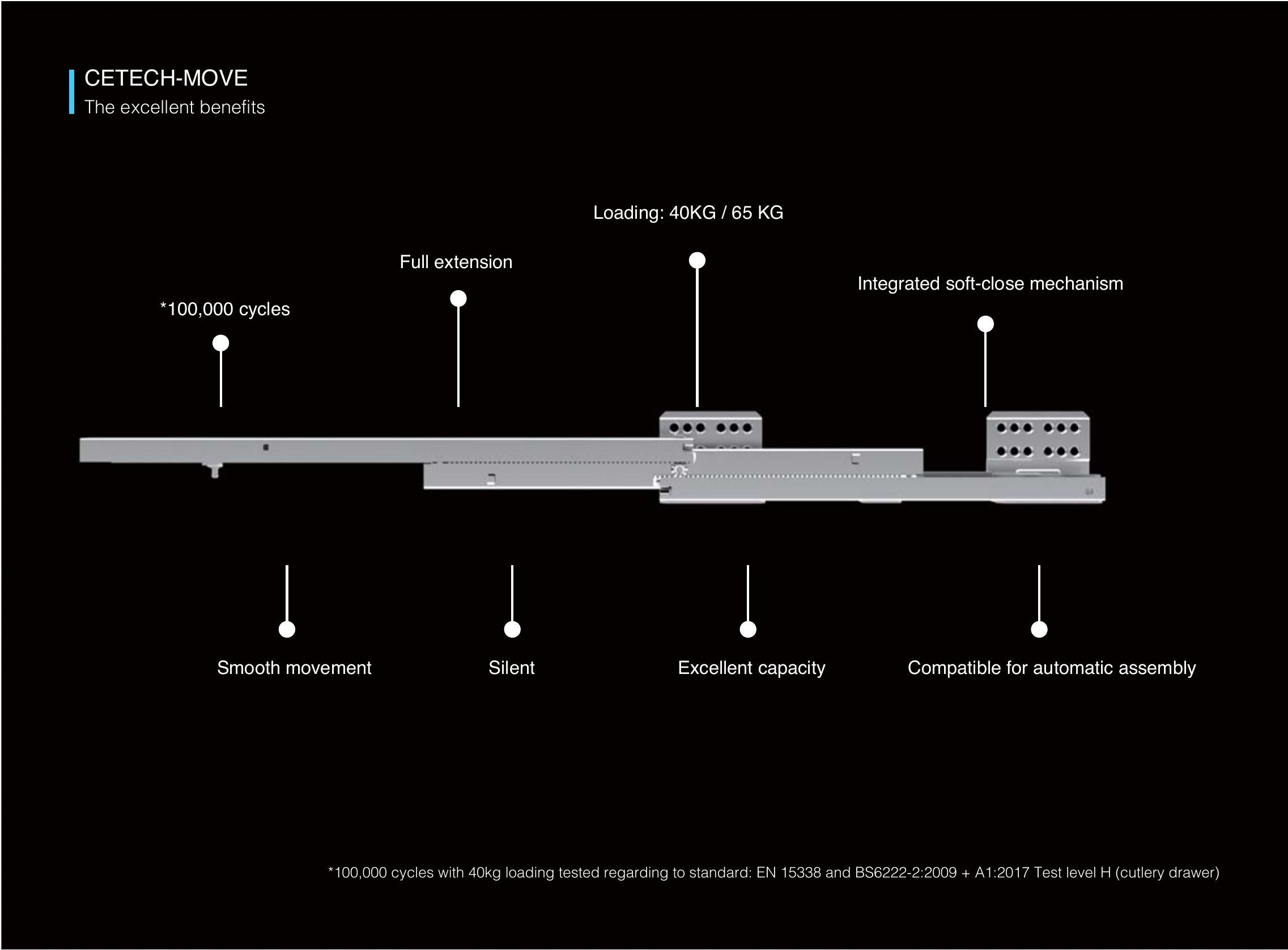

Cetech-Move full-extension drawer runner diagram showing 40/65 kg loading, soft-close mechanism and 100,000 cycle rating
Cetech-Move runner: 100,000 cycles, full extension, 40 kg / 65 kg loading, integrated soft-close, smooth, silent, compatible with automatic assembly.

See it in 3D

Walk around the mechanism

Open the 155° zero-protrusion door, pull out the internal drawer and turn the cabinet to see how the door clears the drawer side.

Preparing the cabinet…

Drag to walk around the cabinet, pinch or scroll to zoom. Illustrative model of a Cemux internal drawer behind a 155° zero-protrusion hinge.

The product range

Find any drawer SKU in seconds

Filter by system or type any item number, size or feature. Flip between the drawer and the parts in each set — a dash means that size or colour is not stocked.

26 products shown

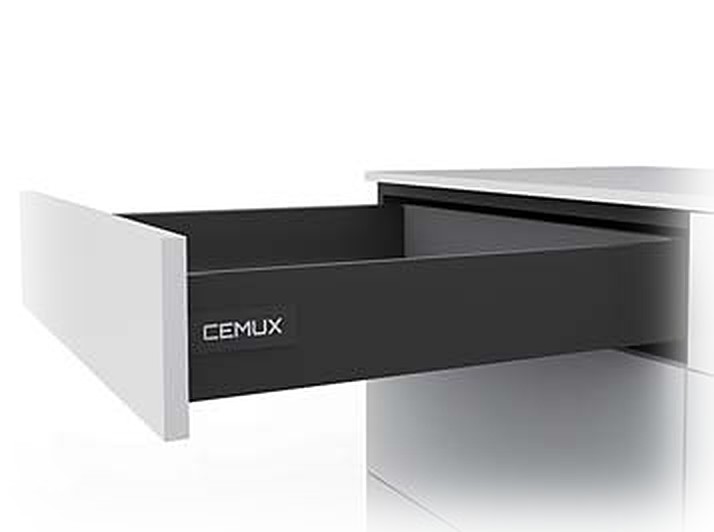

Cemux A box Contempo drawer H84 in anthracite grey, pulled open from a white handleless base unit
Cemux A box Contempo drawer H84 in anthracite grey, pulled open from a white handleless base unit
A box

Contempo drawer side H84 · A3201

  • Contempo wall
  • Soft-close
  • Full extension
6 more specs
  • 84 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 270–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Contempo drawer side H84 (A3201)
NL (mm)WhiteGreyPackage
270–A3201-270G6 sets
300–A3201-300G6 sets
350–A3201-350G6 sets
400–A3201-400G6 sets
450–A3201-450G6 sets
500–A3201-500G6 sets
550––6 sets

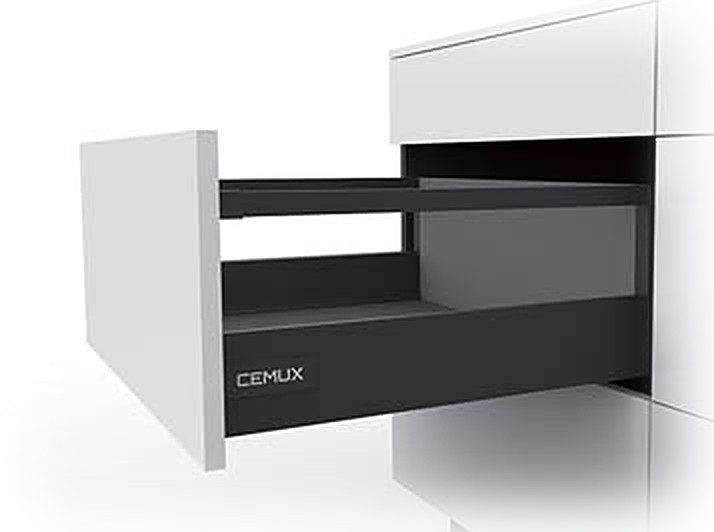

Cemux A box Contempo high drawer H199 with square gallery rail, anthracite grey
Cemux A box Contempo high drawer H199 with square gallery rail, anthracite grey
A box

Contempo drawer side with square rail H199 · A3204

  • Contempo wall
  • Soft-close
  • Full extension
6 more specs
  • 199 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 270–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Contempo drawer side with square rail H199 (A3204)
NL (mm)WhiteGreyPackage
270––6 sets
300––6 sets
350––6 sets
400––6 sets
450–A3204-450G6 sets
500–A3204-500G6 sets
550––6 sets

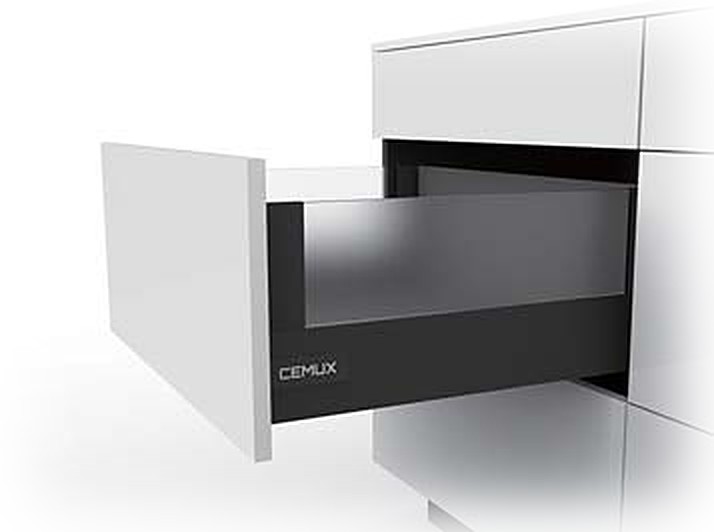

Cemux A box Contempo high drawer H199 with frosted glass side panel in a white kitchen unit
Cemux A box Contempo high drawer H199 with frosted glass side panel in a white kitchen unit
A box

Contempo drawer side with glass panel H199 · A3244

  • Contempo wall
  • Soft-close
  • Full extension
6 more specs
  • 199 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 350–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Contempo drawer side with glass panel H199 (A3244)
NL (mm)White (frosted)Grey (frosted)Package
270––6 sets
300––6 sets
350––6 sets
400––6 sets
450–A3244-450GF6 sets
500–A3244-500GF6 sets
550––6 sets

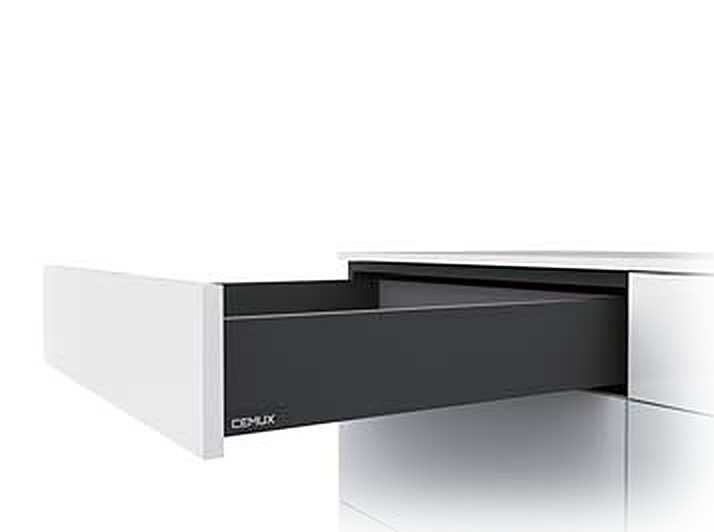

Cemux H box slim-wall drawer H84 in grey, soft-close, open from a white cabinet
Cemux H box slim-wall drawer H84 in grey, soft-close, open from a white cabinet
H box

Drawer H84 · H1301

  • Slim wall
  • Soft-close
  • Full extension
6 more specs
  • 84 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 270–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Drawer H84 (H1301)
NL (mm)WhiteGreyPackage
270–H1301-270G6 sets
300–H1301-300G6 sets
350–H1301-350G6 sets
400–H1301-400G6 sets
450H1301-450WH1301-450G6 sets
500H1301-500WH1301-500G6 sets
550––6 sets

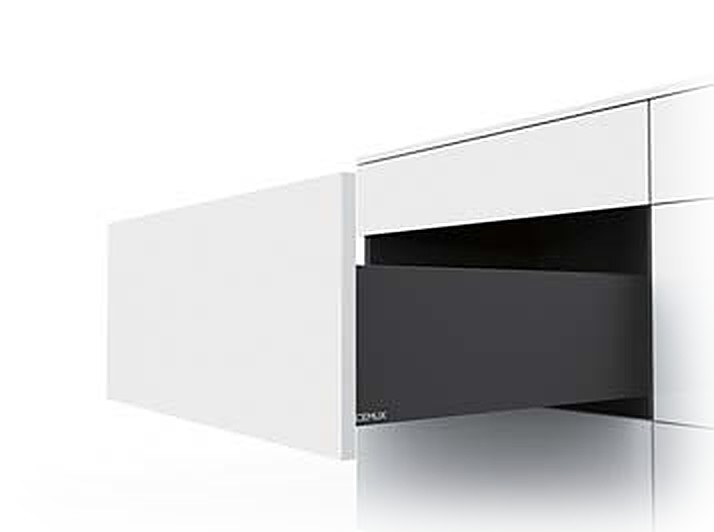

Cemux H box slim-wall pan drawer H167 in anthracite, full extension from a white base unit
Cemux H box slim-wall pan drawer H167 in anthracite, full extension from a white base unit
H box

Drawer H167 · H1303

  • Slim wall
  • Soft-close
  • Full extension
6 more specs
  • 167 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 270–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Drawer H167 (H1303)
NL (mm)WhiteGreyPackage
270––5 sets
300––5 sets
350–H1303-350G5 sets
400–H1303-400G5 sets
450–H1303-450G5 sets
500–H1303-500G5 sets
550––5 sets

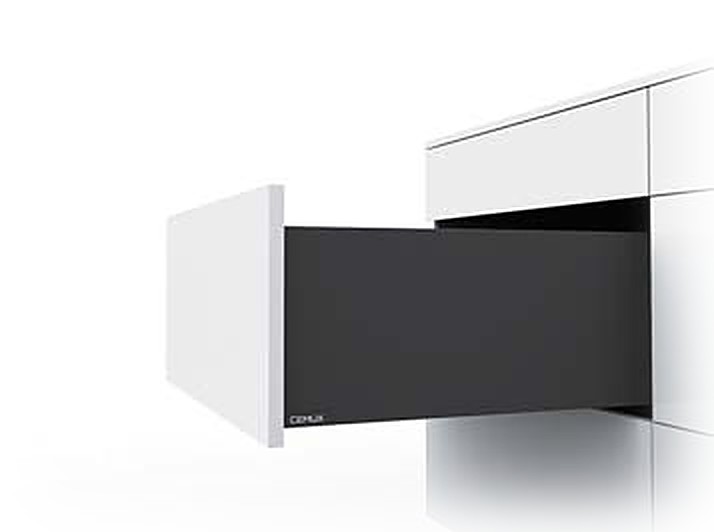

Cemux H box slim-wall high drawer H199 in anthracite, open from a white unit
Cemux H box slim-wall high drawer H199 in anthracite, open from a white unit
H box

Drawer H199 · H1304

  • Slim wall
  • Soft-close
  • Full extension
6 more specs
  • 199 mm drawer height
  • ±2 mm up & down adjustment
  • ±1.5 mm left & right adjustment
  • Length from 270–550 mm
  • 100,000 cycles at 40 kg loading
  • Loading capacity 40 kg
Sizes & codes · 7
Order information for Drawer H199 (H1304)
NL (mm)WhiteGreyPackage
270––4 sets
300––4 sets
350––4 sets
400–H1304-400G4 sets
450–H1304-450G4 sets
500H1304-500WH1304-500G4 sets
550––4 sets

Systems at a glance

Five families, one supplier

A cabinet that works beautifully

Consider the door clearance and the space around your drawer system.

40 kg

Drawer loading capacity

100k

Tested opening cycles

270–550

Drawer lengths (mm)

84–199

Drawer heights (mm)

Measuring guide

Measuring terms & cutting rules

LW
Internal cabinet width
L
Length
SKL
Length of drawer
X
Thickness of door
NL
Nominal length
KB
Cabinet width
LT
Minimum installation depth
FEC
Front edge of cabinet

Inset drawer front panels

Panels and rails ship at 1200 mm for DIY cutting to the internal cabinet width (LW).

Cutting deductions for inset drawer front panels
PartA boxH box
Front panelLW − 90LW − 100
Square railLW − 92LW − 88

Downloads

LHS Essentials catalogue (PDF) Check stock on the Trade Portal

Frequently Asked Questions

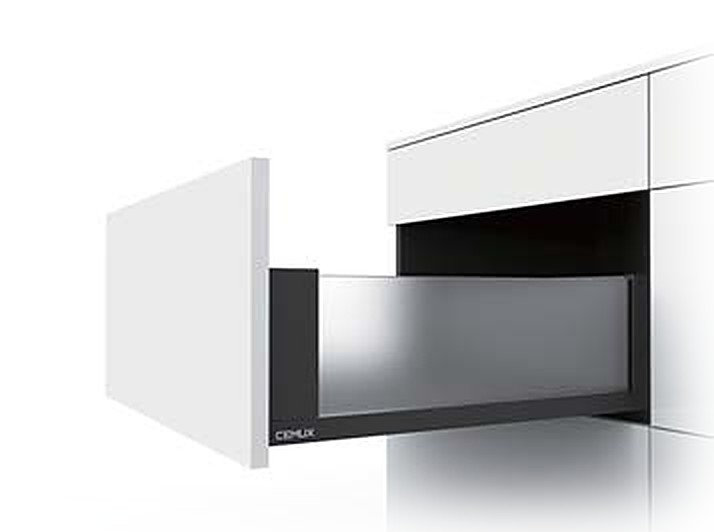

Both are soft-close, full-extension drawer systems rated to 40 kg and 100,000 cycles. A box uses the Contempo wall profile in 84 and 199 mm heights; H box uses a slimmer wall in 84, 167 and 199 mm heights and offers more glass-sided options.

The Cetech-Move runner is rated to 40 kg (65 kg version available) and tested to 100,000 cycles at 40 kg to EN 15338 and BS6222-2:2009 + A1:2017 level H (cutlery drawer). The range carries the LGA Qualitäts-Zertifikat.

NL is the nominal length of the drawer. Pick the longest NL that fits the internal depth of your cabinet — most 560–580 mm deep base units take a 500 mm drawer. Drawers are stocked from 270 to 550 mm.

Front panels ship at 1200 mm for DIY cutting. For A box, cut to LW − 90 mm (square rail LW − 92). For H box, cut to LW − 100 mm (square rail LW − 88), where LW is the internal cabinet width.

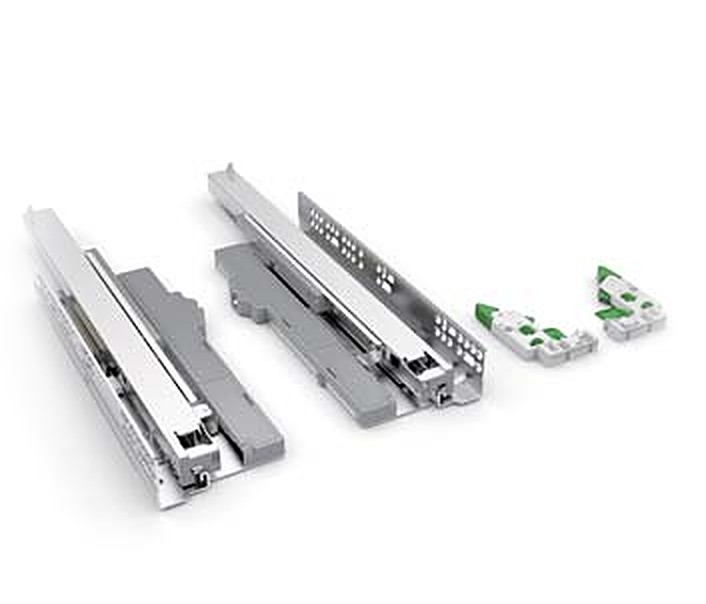

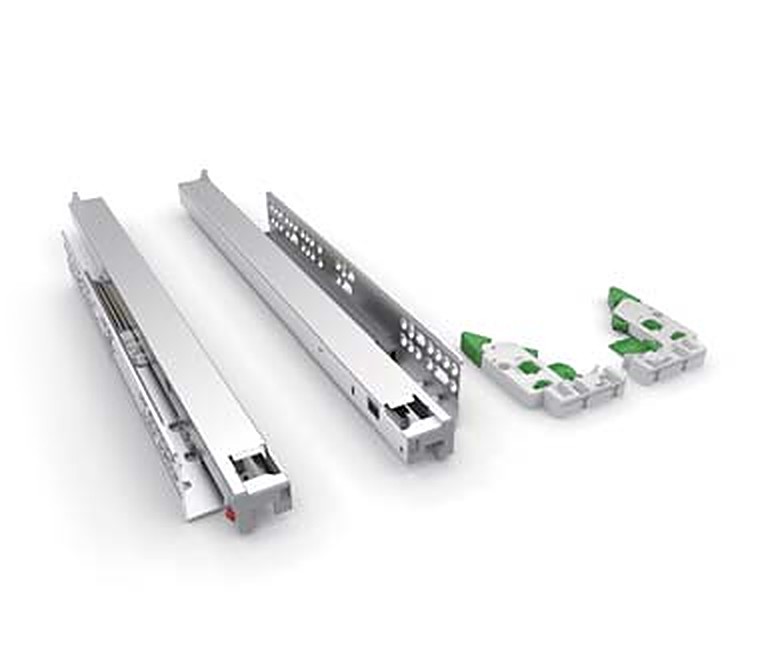

All three are synchronised, full-extension 25 kg slides for 16 mm drawer sides. R113 combines soft-close and push-open, R213 is soft-close, and R312 is push-open for handleless kitchens. For drawers 1200 mm or wider add the R1130600 stabilisation set.

Yes. Light Hardware Supplies is a family-run trade wholesaler in Kilkeary, Nenagh, Co. Tipperary, delivering nationwide to kitchen manufacturers, joiners and trade suppliers.

Trade pricing & stock

Send us your cutting list or item codes. We will confirm stock, price your drawers, runners and accessories, and deliver nationwide from Nenagh.

Submit An Enquiry +353 (0) 67 31471
